供應百益檔案袋制筒機

品牌：

百益

型號：

001

詳細說明

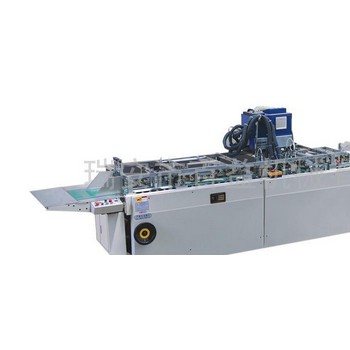

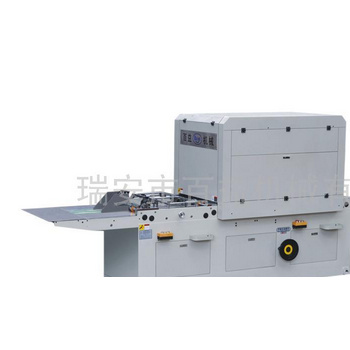

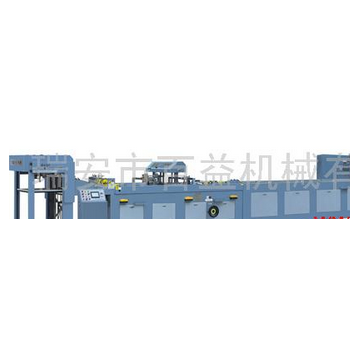

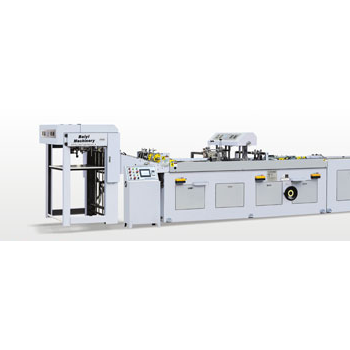

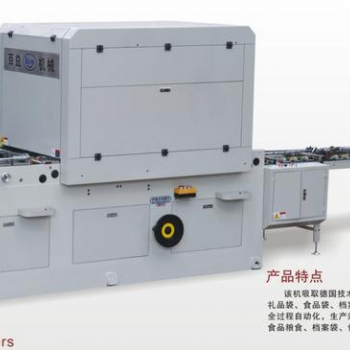

BY-350/450/550ZTJ 單張式手提紙袋制筒機

Drum machine for single-piece hand paper bags BY-350/450/550ZTJ

產品特點     Features

本機吸取德國技術生產全自動單張式手提袋機(如鞋袋、襯衫袋、內衣袋、禮品袋、

食品袋、檔案袋、包裝袋等)。 采用PLC可編程序控制器、觸摸屏人機界面、實施送紙、

自動吸紙、壓痕、折邊、上膠成形、整平、收紙，可方便的進行人工折底。全過程自動

化，生產效率與傳統手工制作相比提高幾十倍。是生產手提袋和食品糧食、檔案袋、

包裝袋的*設備。

This machine was researched on the basis of combination of Germany technologies, i.e. fully auto single-piece square bottom hand paper bag machines. The bags include shoes bags, shirt bags, underwear bags, gift bags, food bags, file bags and packing bags. PLC programmable controller and man-machine touch

screen are adopted for it. It can feed, suck automatically, pss, fold, glue and form, flatten, collect and manually fold the bottom conveniently. The production capacity and automation have been improved effec-tively, ten times of the traditional ones. It is a good equipment for producing hand bags, food bags, file bags and packing bags.

技術參數/Specifications:                             技術參數/Specifications:

型 號 Model

BY-550ZTJ

型     號  Model

BY-450ZTJ

進紙*大規格 The maximum

specification of the sheet paper

550 mm X890mm

進紙*大規格 The maximum

specification of the sheet paper

450 mm X850mm

進紙*小規格 The minimum

specification of the sheet paper

450 mm X460mm

進紙*小規格 The minimum

specification of the sheet paper

350 mmX400mm

紙張重量 Basic Weight

120-350g/m?

紙張重量 Basic Weight

120-350g/m?

成品袋寬 Bag Width

150 mm -315mm

成品袋寬 Bag Width

150 mm -275mm

風琴高度

40 mm -130mm

風琴高度

40 mm -120mm

整機功率 Power Consumption

6.5kw

整機功率 Power Consumption

6kw

外型尺寸 Machine Size

7500 mm x1500 mm x1580mm

外型尺寸 Machine Size

7000 mm x1300 mm x1580mm

制袋速度 Speed

40-50只/分

制袋速度 Speed

40-60只/分

整機重量 Total Weight

4000kg

整機重量 Total Weight

3700kg

技術參數/Specifications:

型     號  Model

BY-350ZTJ

進紙*大規格 The maximum

specification of the sheet paper

430 mm X620mm

進紙*小規格 The minimum

specification of the sheet paper

280 mm X300mm

紙張重量 Basic Weight

80-250g/m?

成品袋寬 Bag Width

120 mm -250mm

風琴高度

40 mm -100mm

整機功率 Power Consumption

5kw

外型尺寸 Machine Size

6000 mm x1100 mm x1500mm

制袋速度 Speed

50-70只/分

整機重量 Total Weight

3000kg
